28 page SOIC Drawings Library in PDF format.

SOIC - Gull Wing  50 mils (1.27mm) Pitch

Lead	Body Width	Order Number Reel	Order Number Tube	Drawing	Daisy Chain
8	150 mils (3.9mm)	SO8E13A	SO8M	Drawing	Daisy Chain
8	208 mils (5.3mm)	SOP8E13A	SOP8M	Drawing	Daisy Chain
14	150 mils (3.9mm)	SO14E13A	SO14M	Drawing	Daisy Chain
14	208 mils (5.3mm)	SOP14E13A	SOP14M	Drawing	Daisy Chain
14	220 mils (5.6mm)	SOM14E13A	SOM14M	Drawing	Daisy Chain
16	150 mils (3.9mm)	SO16E13A	SO16M	Drawing	Daisy Chain
16	208 mils (5.3mm)	SOP16E13A	SOP16M	Drawing	Daisy Chain
16	220 mils (5.6mm)	SOM16E13A	SOM16M	Drawing	Daisy Chain
16	300 mils (7.5mm)	SOL16E13A	SOL16M	Drawing	Daisy Chain
18	300 mils (7.5mm)	SOL18E13A	SOL18M	Drawing	Daisy Chain
20	300 mils (7.5mm)	SOL20E13A	SOL20M	Drawing	Daisy Chain
24	300 mils (7.5mm)	SOL24E13A	SOL24M	Drawing	Daisy Chain
28	300 mils (7.5mm)	SOL28E13A	SOL28M	Drawing	Daisy Chain
28	330~350 mils (8.4~8.9mm)	SOW28E13A	SOW28M	Drawing	-
32	300 mils (7.6mm)	SOL32E13A	SOL32M	Drawing	Daisy Chain
32	330~350 mils (8.4~8.9mm)	SOW32E13A	SOW32M	Drawing	-
32	400 mils (10mm)	SOX32E13A	SOX32M	Drawing	-
32	450 mils (11.4mm)	SOY32E13A	SOY32M	Drawing	Daisy Chain
40	300 mils (7.6mm)	SOL40E13A	SOL40M	Drawing	-
40	400 mils (10mm)	SOX40E13A	SOX40M	Drawing	-
40	450 mils (11.4mm)	SOY40E13A	SOY40M	Drawing	-
44	525 mils (13.3mm)	SOZ44E13A	SOZ44M	Drawing	-
For Lead Free, add -TIN to part number. For Daisy Chain, add -DE to end of Part Number. For Isolated circuit without internal connections, add -ISO to end of Part Number.

16 page SSOP Drawings Library in PDF format.

SSOP - Gull Wing   Fine-Pitch

<

Lead	Body Width	Pitch	Order Number Reel	Order Number Tube	Outline Drawing	Daisy Chain
8	208 mils (5.3mm)	0.65mm	SSOP8E13A25	SSOP8M25	Drawing	Daisy Chain
14	208 mils (5.3mm)	0.65mm	SSOP14E13A25	SSOP14M25	Drawing	Daisy Chain
16	208 mils (5.3mm)	0.65mm	SSOP16E13A25	SSOP16M25	Drawing	Daisy Chain
20	208 mils (5.3mm)	0.65mm	SSOP20E13A25	SSOP20M25	Drawing	Daisy Chain
24	208 mils (5.3mm)	0.65mm	SSOP24E13A25	SSOP24M25	Drawing	Daisy Chain
28	208 mils (5.3mm)	0.65mm	SSOP28E13A25	SSOP28M25	Drawing	Daisy Chain
36	300 mils (7.5mm)	0.8mm	SSOP36E13A30	SSOP36M30	Drawing	Daisy Chain
48	300 mils (7.5mm)	0.635mm	SSOP48E13A25	SSOP48M25	Drawing	Daisy Chain
56	300 mils (7.5mm)	0.635mm	SSOP56E13A25	SSOP56M25	Drawing	Daisy Chain
For Lead Free, add -TIN to part number. For Daisy Chain, add -DE to end of Part Number. For Isolated circuit without internal connections, add -ISO to end of Part Number.

19 page TSSOP Drawings Library in PDF format.

Lead Free TSSOP  Fine-Pitch

Lead	Body Width	Pitch	Order Number Reel	Order Number Tube	Outline Drawing	Daisy Chain
8	173 mils (4.4mm)	0.65mm	TSSOP8E13A25-TIN	TSSOP8M25-TIN	Drawing	Daisy Chain
14	173 mils (4.4mm)	0.65mm	TSSOP14E13A25-TIN	TSSOP14M25-TIN	Drawing	Daisy Chain
16	173 mils (4.4mm)	0.65mm	TSSOP16E13A25-TIN	TSSOP16M25-TIN	Drawing	Daisy Chain
20	173 mils (4.4mm)	0.65mm	TSSOP20E13A25-TIN	TSSOP20M25-TIN	Drawing	Daisy Chain
24	173 mils (4.4mm)	0.65mm	TSSOP24E13A25-TIN	TSSOP24M25-TIN	Drawing	Daisy Chain
28	173 mils (4.4mm)	0.65mm	TSSOP28E13A25-TIN	TSSOP28M25-TIN	Drawing	Daisy Chain
28	240 mils (6.1mm)	0.65mm	TSSOPW28E13A25-TIN	TSSOPW28M25-TIN	Drawing	Daisy Chain
30	173 mils (4.4mm)	0.5mm	TSSOP30E13A19.7-TIN	TSSOP30M19.7-TIN	Drawing	Daisy Chain
32	240 mils (6.1mm)	0.65mm	TSSOP32E13A25-TIN	TSSOP32M25-TIN	Drawing	Daisy Chain
38	173 mils (4.4mm)	0.5mm	TSSOP38E13A19.7-TIN	TSSOP38M19.7-TIN	Drawing	Daisy Chain
38	240 mils (6.1mm)	0.65mm	TSSOP38E13A25-TIN	TSSOP38M25-TIN	Drawing	Daisy Chain
44	173 mils (4.4mm)	0.5mm	TSSOP44E13A19.7-TIN	TSSOP44M19.7-TIN	Drawing	Daisy Chain
48	173 mils (4.4mm)	0.4mm	TSSOP48E13A15.7-TIN	TSSOP48M15.7-TIN	Drawing	Daisy Chain
48	240 mils (6.1mm)	0.5mm	TSSOP48E13A19.7-TIN	TSSOP48M19.7-TIN	Drawing	Daisy Chain
56	173 mils (4.4mm)	0.4mm	TSSOP56E13A15.7-TIN	TSSOP56M15.7-TIN	Drawing	Daisy Chain
56	240 mils (6.1mm)	0.5mm	TSSOP56E13A19.7-TIN	TSSOP56M19.7-TIN	Drawing	Daisy Chain
64	240 mils (6.1mm)	0.5mm	TSSOP64E13A19.7-TIN	TSSOP64M19.7-TIN	Drawing	Daisy Chain
80	240 mils (6.1mm)	0.4mm	TSSOP80E13A15.7-TIN	TSSOP80T15.7-TIN	Drawing	Daisy Chain
Lead Free: -TIN = Sn100 For Daisy Chain, add -DE to end of Part Number. For Isolated circuit without internal connections, add -ISO to end of Part Number.

3 page MSOP Drawings Library in PDF format.

MSOP - Gull Wing   Fine-Pitch

Lead	Body Width	Pitch	Order Number Reel	Order Number Tube	Outline Drawing	Daisy Chain
8	118 mils (3.0mm)	0.65mm	MSOP8E13A-TIN	MSOP8M-TIN	Drawing	Daisy Chain
10	118 mils (3.0mm)	0.5mm	MSOP10E13A-TIN	MSOP10M-TIN	Drawing	Daisy Chain
For Lead Free: -TIN = Sn100 For Daisy Chain, add -DE to end of Part Number. For Isolated circuit without internal connections, add -ISO to end of Part Number.

7 page HSOP and PFP Drawings Library in PDF format.

HSOP -   with Heat Spreader

Lead	Body Width	Pitch	Order Number Reel	Order Number Tube	Outline Drawing	Dasiy Chain
16	270 mils (6.8mm)	0.8mm	PFP16E13A30F	PFP16M30F	Drawing	Daisy Chain
16	270 mils (6.8mm)	0.8mm	PFP16E13A30-TIN	PFP16M30-TIN	Drawing	Daisy Chain
20	433 mils (11mm)	1.27mm	HSOP20E13A-TIN	HSOP20M-TIN	Drawing	Daisy Chain
24	433 mils (11mm)	1.0mm	HSOP24E13A40-TIN	HSOP24M40-TIN	Drawing	Daisy Chain
30	433 mils (11mm)	0.8mm	HSOP30E13A30-TIN	HSOP30M30F-TIN	Drawing	Daisy Chain
36	433 mils (11mm)	0.65mm	HSOP36E13A25-TIN	HSOP36M25-TIN	Drawing	Daisy Chain
44	433 mils (11mm)	0.65mm	HSOP44E13A25-TIN	HSOP44M25-TIN	Drawing	Daisy Chain
For Lead Free: F=NiPdAu or -TIN=Sn100 For Daisy Chain, add -DE to end of Part Number. For Isolated circuit without internal connections, add -ISO to end of Part Number.

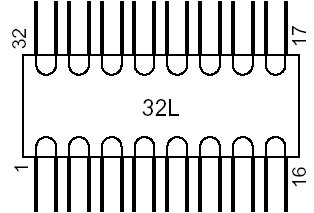

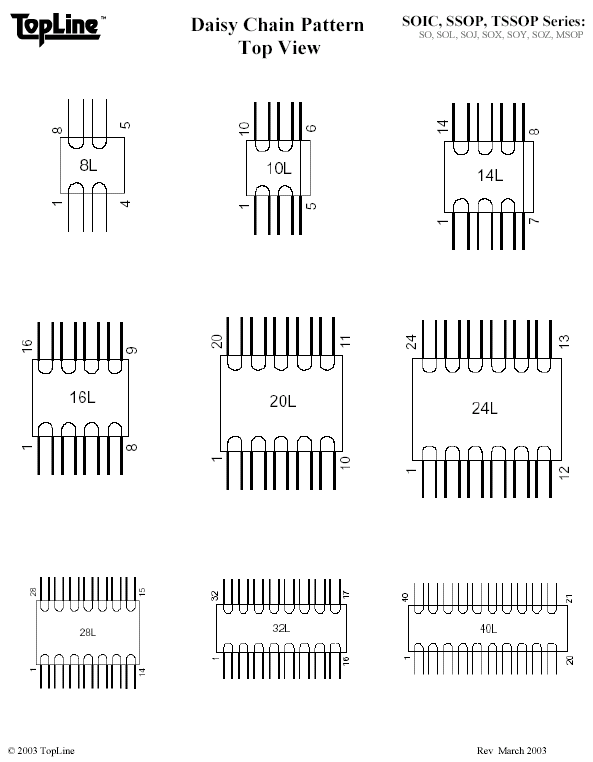

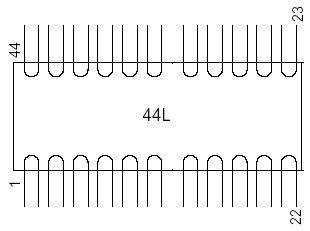

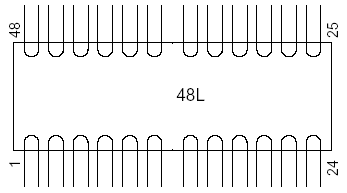

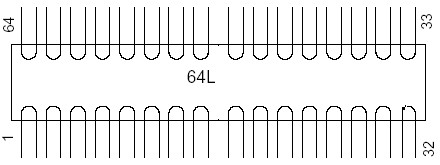

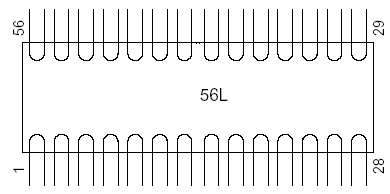

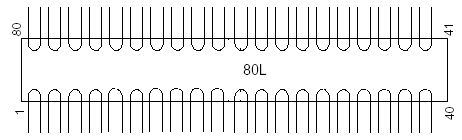

Quick View Daisy Chain.     Lead Free Suffix: TIN=Sn100, F=NiPd
