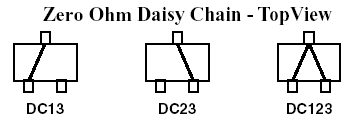

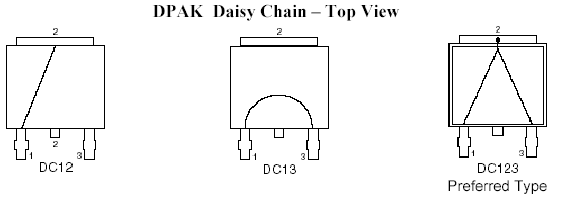

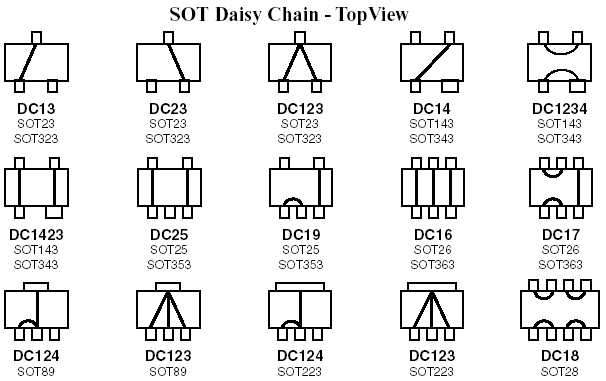

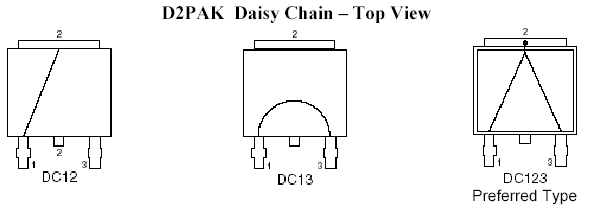

Click here Daisy Chain Zero Ohm Jumper

JEDEC -Transistors
SOT23/SOT323 SOT25/SOT353 SOT26/SOT363 SOT343 SOT89 SOT223 SOT523
Size	Cross Reference	Qty on Reel	Tape Width	Order Number Outline Drawing	Daisy Chain
SOT23	TO-236AB	3000	8mm	SOT23E7A	Daisy Chain
SOT25	SOT23-5 and SC74A	3000	8mm	SOT25E7A	Daisy Chain
SOT26	SOT23-6 and SC74	3000	8mm	SOT26E7A	Daisy Chain

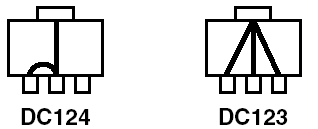

SOT89	SC62 and TO-243AA	1000	12mm	SOT89E7A	Daisy Chain

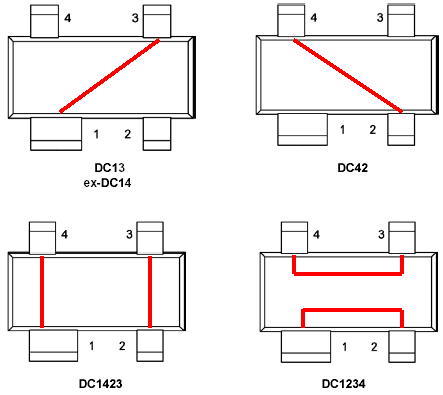

SOT143	TO-253AA	3000	8mm	SOT143E7A	Daisy Chain
SOT223	SC73 and TO-261AA	2500	16mm	SOT223E13A	Daisy Chain
SOT323	SC70	3000	8mm	SOT323E7A	Daisy Chain

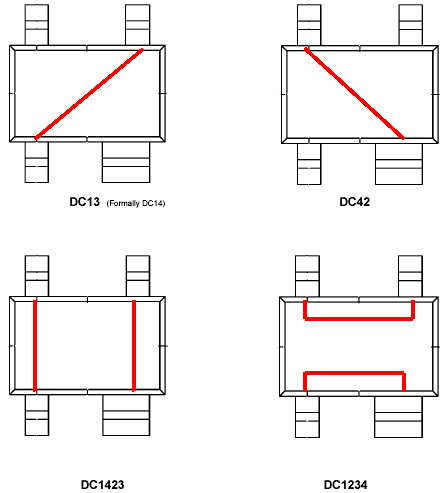

SOT343	SC82	3000	8mm	SOT343E7A	Daisy Chain
SOT353	SC70-5 and SC88A	3000	8mm	SOT353E7A	Daisy Chain
SOT363	SC70-6 and SC88	3000	8mm	SOT363E7A	Daisy Chain

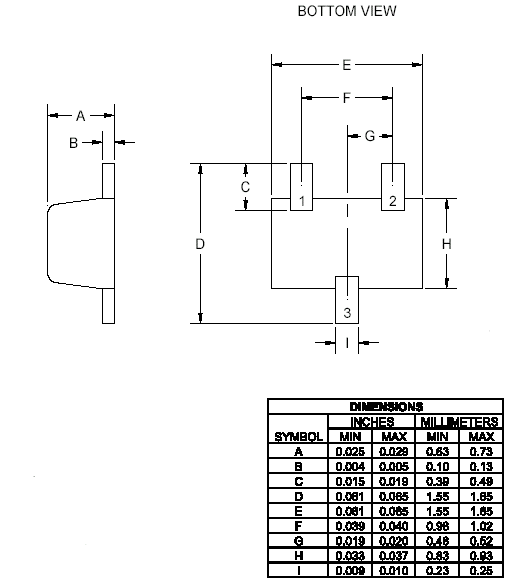

SOT523	-	3000	8mm	SOT523E7A	-
For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number.
Japanese Size
Size	Cross Reference	Qty on Reel	Tape Width	Order Number Outline Drawing	Daisy Chain

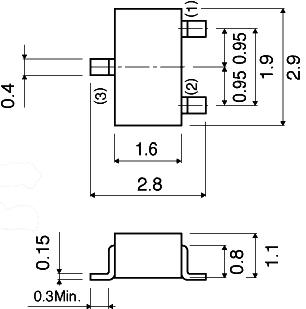

SC59	TO-236AA or SOT-346	3000	8mm	SC59E7A	-
SC61A	4-Lead	3000	8mm	SC61A-E7A	-
SC61B	Reverse Wide 4-Lead	3000	8mm	SC61B-E7A	-
SC62	SOT89	1000	12mm	SC62E7A	Daisy Chain
SC63	DPAK	1000	12mm	SC63E13A	Daisy Chain
SC70	SOT323	3000	8mm	SC70E7A	Daisy Chain
SC73	SOT223	2500	16mm	SC73E13A	Daisy Chain
SC74	SOT26, SOT23-6, SOT457	3000	8mm	SC74E7A	Daisy Chain
SC74A	SOT25 or SOT23-5	3000	8mm	SC74AE7A	Daisy Chain

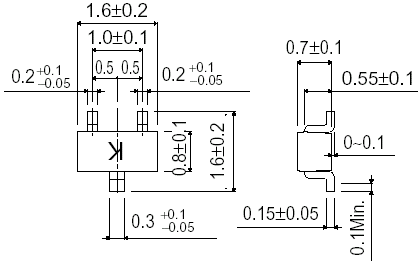

SC75A	SC90 or SOT416	3000	8mm	SC75A-E7A	-
SC76	SOD323	3000	8mm	SC76E7A	-
SC79	SOD523	3000	8mm	SC79E7A	-
SC82	SOT343 - 4 Lead	3000	8mm	SC82E7A	Daisy Chain
SC83A	D2PAK	1000	24mm	SC83AE13A	Daisy Chain
SC88	SOT363	3000	8mm	SC88E7A	Daisy Chain
SC88A	SOT353	3000	8mm	SC88AE7A	Daisy Chain
SC89	SOT490 - SC75A with Flat Leads	3000	8mm	SC89E7A	-
SC90	Micro-SOT	3000	8mm	SC90E7A	-
EMT5	Wide body SC90 5-Ld Flat Lead	8000	8mm Wide 2mm pitch	EMT5E7A	-
EMT6	Wide body SC90 6-Ld Flat Lead	8000	8mm Wide 2mm pitch	EMT6E7A	-

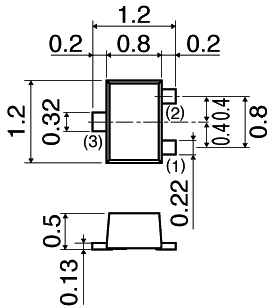

VT3	Ultra Minature	8000	8mm Wide 2mm Pitch	VT3E7A	-
For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number.
Power Device
Size	Cross Reference	Qty on Reel	Tape Width	Order Number Outline Drawing	Daisy Chain
DPAK	TO-252AA	2500	16mm	DPAK-E13A	Daisy Chain
D2PAK	TO-263AB	1000	24mm	D2PAK-E13A	Daisy Chain

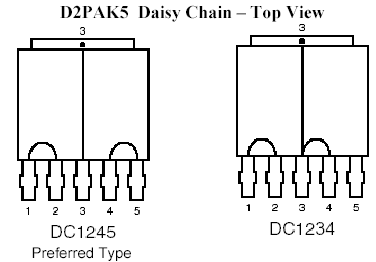

D2PAK	TO-263XX	1000	24mm	D2PAK5-E13A	Daisy Chain
D2PAK	TO-263XX	1000	24mm	D2PAK7-E13A	-

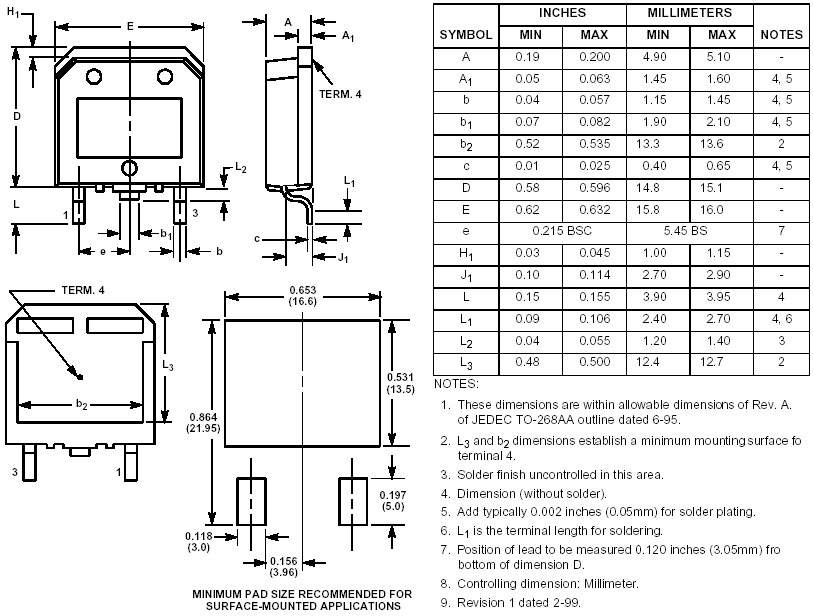

D3PAK	TO-268AA	500	24mm	D3PAK-E13A	-
For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number.
MELF Cylindrical Diode
Glass     Plastic
Size	Cross Reference	Qty on Reel	Tape Width	Order Number Outline Drawing	Daisy Chain
SM1-PLASTIC	MELF 2.5 x 5.0mm	5000	12mm	SM1E13A-PLASTIC	-
LL41-Glass	MELF DO-213AB, LL35, LL41 2.5 x 5.0mm	5000	12mm	SM1E13A-GLASS
SOD80	mini-MELF DO-213AA, LL34 1.6 x 3.5mm	2500	8mm	SOD80E7A
For Lead Free, add -TIN to part number.
Flanged Melf Diode
Square Flanged Ends
Size	Cross Reference	Qty on Reel	Tape Width	Order Number Outline Drawing	Daisy Chain

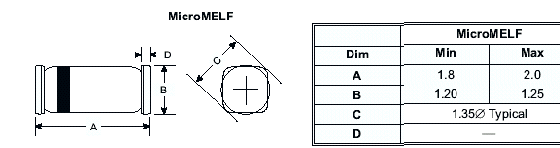

~	1.2mm x 1.9mm	~	~	Micro-Melf	-

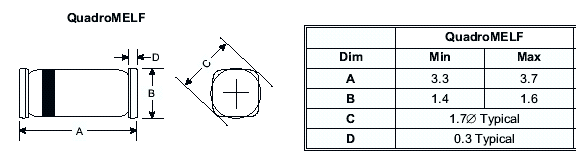

~	1.6mm x 3.5mm	~	~	Quadro-Melf	-

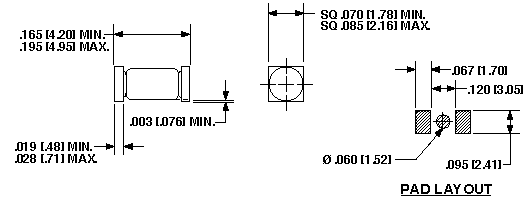

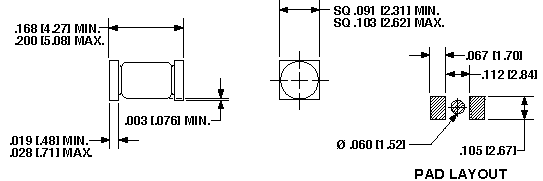

~	2.5mm x 5.0mm	~	~	A-Melf	-
~	2.0mm x 4.7mm	~	~	B-Melf	-

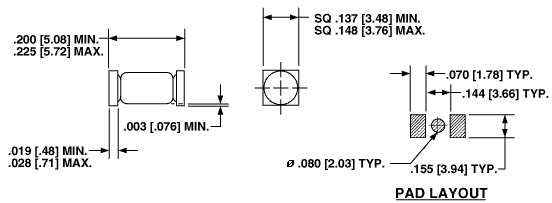

~	3.7mm x 5.4mm	~	~	B-Melf-W	-

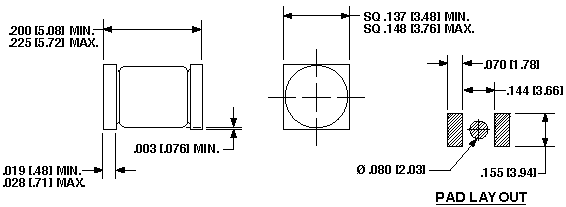

~	3.7mm x 5.4mm	~	~	E-Melf	-

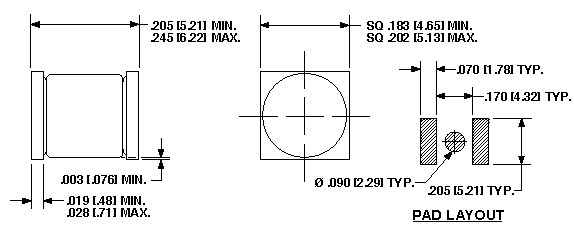

~	5.0mm x 6.0mm	~	~	G-Melf	-
Rectangular Case- Gull Wing Leads - Diode
Gull-Wing Leads    Flat Leads
Size	Cross Reference	Qty on Reel	Tape Width	Order Number Outline Drawing	Daisy Chain
SOD123	2.7 x 1.5mm Gull Wing	3000	8mm	SOD123E7A	-
SOD123F	2.7 x 1.5mm Flat Leads	3000	8mm	SOD123F-E7A
SOD323	SC76 1.7 x 1.25mm Gull Wing	3000	8mm	SOD323E7A
SOD323F	1.7 x 1.25mm Flat Lead	3000	8mm	SOD323F-E7A

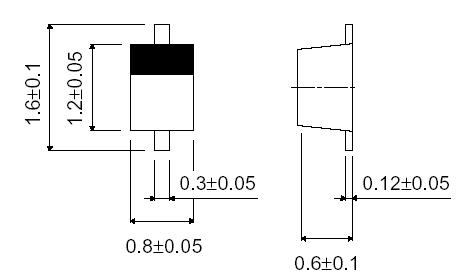

SOD523F	SOD523 1.6 x 0.8mm Flat Leads	3000	8mm	SOD523E7A	-

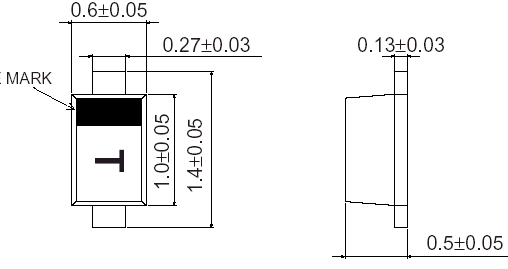

SOD723F	SOD723 1.0 x 0.6mm Flat Leads	3000	8mm	SOD723E7A	-
SC79F	SOD523 1.6 x 0.8mm Flat Leads	3000	8mm	SC79F-E7A	-
SMA-G	DO-215AC 4.3 x 2.6mm Gull Wing	5000	12mm	SMAG-E13A	-

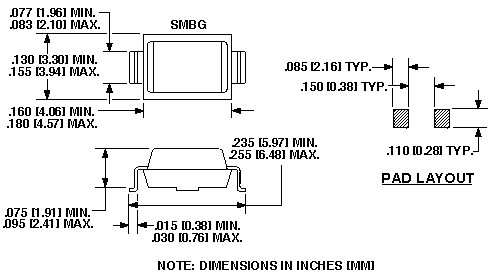

SMB-G	DO-215AA 4.3 x 3.6mm Gull Wing	2500	12mm	SMBG-E13A	-

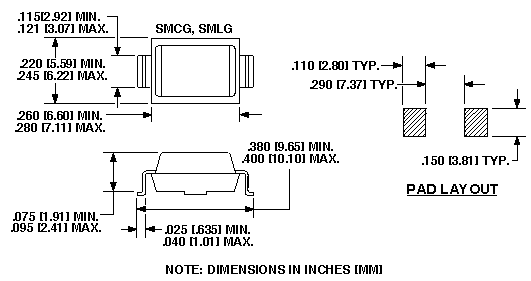

SMC-G	DO-215AB 7.0 x 3.6mm Gull Wing	2500	12mm	SMCG-E13A	-
For Lead Free, add -TIN to part number.
Rectangular Case- C-Bend Lead (Modified J-Lead) - Diode
DO214AC SMAJ - FM1      DO214AA SMBJ / DO214AC SMCJ
Size	Cross Reference	Qty on Reel	Tape Width	Order Number Outline Drawing	Daisy Chain
FM1	DO-214AC 4.3 x 2.6mm J-Lead	1500 5000~7500	12mm	FM1E7A FM1E13A	-
SMA-J	DO-214AC 4.3 x 2.6mm J-Lead	1500 5000~7500	12mm	SMAJ-E7A SMAJ-E13A	-
SMB-J	DO-214AA 4.3 x 3.6mm J-Lead	700~750 2500~3500	12mm	SMBJ-E7A SMBJ-E13A	-
SMC-J	DO-214AB 7.0 x 6.0mm J-Lead	700-750 3200~3500	16mm	SMCJ-E7A SMCJ-E13A	-
For Lead Free, add -TIN to part number.
Ceramic Case Power Discrete Semiconductor
Size	Cross Reference	Qty	Package	Order Number Outline Drawing	Daisy Chain

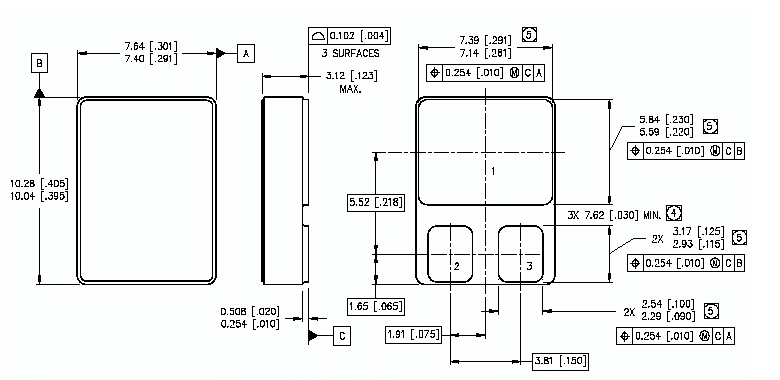

TO-276AA	Size 7.25mm x 10mm	1	Bulk	SMD.5	Ask

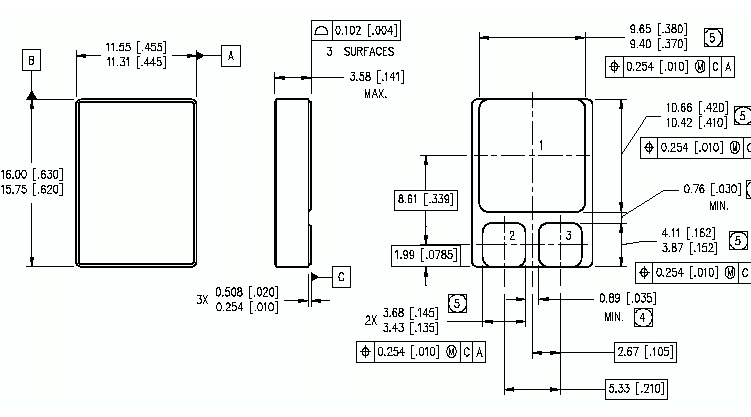

TO-276AB	Size 11.5mm x 16mm	1	Bulk	SMD1	Ask

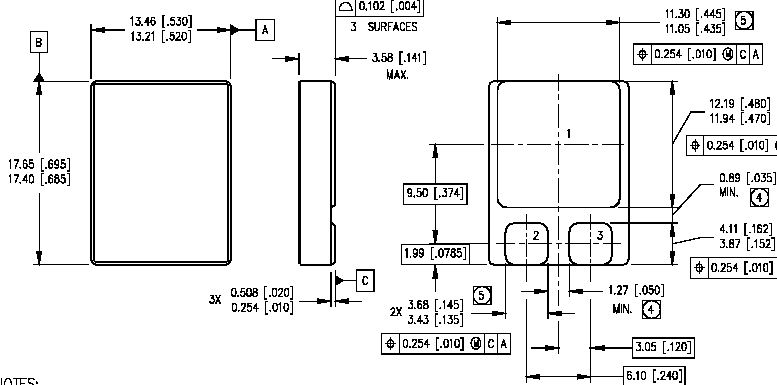

TO-276AC	Size 13.4mm x 17.5mm	1	Bulk	SMD2	Ask
Parts are Lead Free with Gold (Au) plating. Without Lid, add -N to end of part number
Ceramic SOT and LCC
CERSOT23 (LCC3) LCC6
Leads	Size	Qty	Tape Width	Order Number Outline Drawing	Daisy Chain

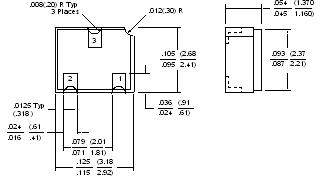

3-Lead	2.5mm x 3.0mm	1	8mm	CERSOT23	-DC
4-Lead MO-041BA	3.8mm x 5.6mm	1	12mm	LCC4	-DC
6-Lead MO-041BB	4.4mm x 6.2mm	1	12mm	LCC6	-DC
Parts are Lead Free with Gold (Au) plating

MELF 8 Page Drawings Library
Standard
Size (inch)	Name	Qty on Reel	Tape Width	Order Number 7" Reel	PDF Dwg
0604	micro-MELF	3000	8mm	SRM0604E7A	PDF
0805	micro-MELF	3000	8mm	SRM0805E7A	PDF
1206	mini-MELF	3000	8mm	SRM1206E7P	PDF

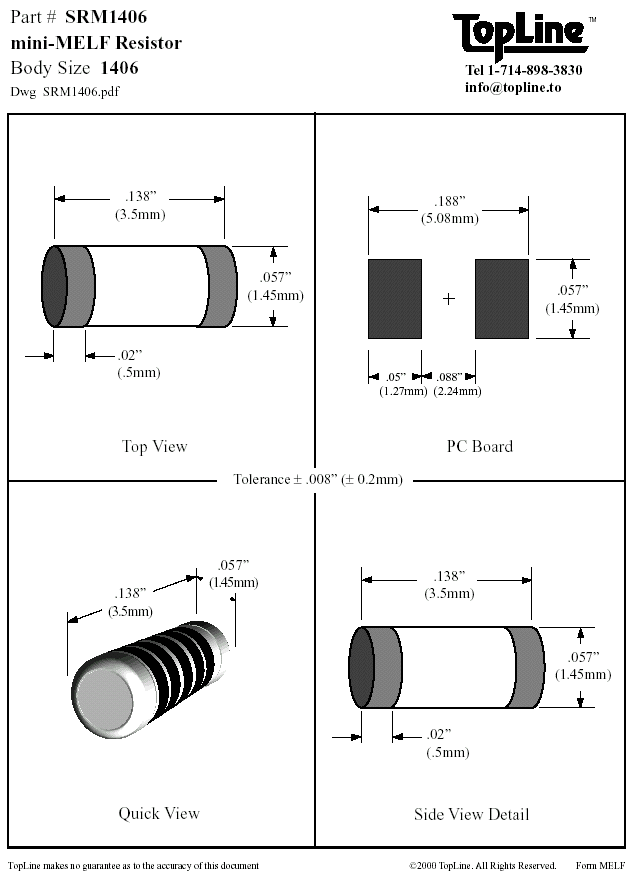

1406	mini-MELF	3000	8mm	SRM1406E7P	PDF

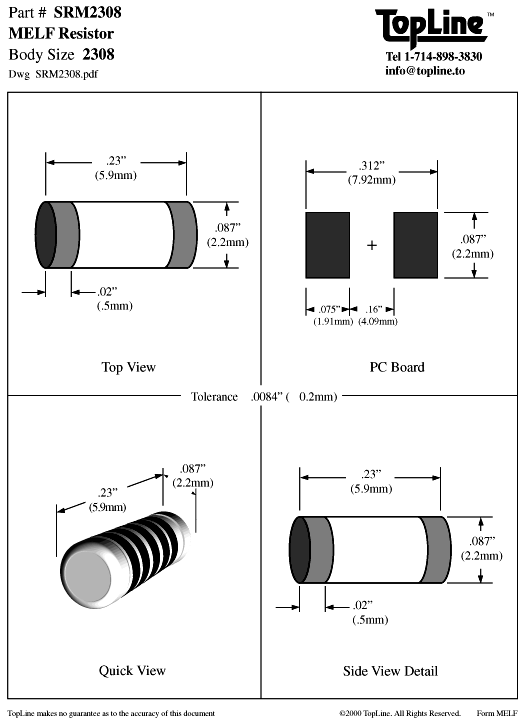

2308	MELF	1500	12mm	SRM2308E7A	PDF
Lead Free Sn100 Tin
Size (inch)	Name	Qty on Reel	Tape Width	Order Number 7" Reel	PDF Dwg
0805 .	micro-MELF	3000	8mm	SRM0805E7A-TIN	PDF
0805 Zero Ohm	micro-MELF	3000	8mm	SRM0805E7A-ZERO-TIN	PDF
1206 .	mini-MELF	3000	8mm	SRM1206E7P-TIN	PDF
1206 Zero Ohm	mini-MELF	3000	8mm	SRM1206E7P-ZERO-TIN	PDF
2308 .	MELF	2000	12mm	SRM2308E7A-TIN	PDF
2308 Zero Ohm	MELF	2000	12mm	SRM2308E7A-ZERO-TIN	PDF

Discretes - Taping Information

Device (W - Wide, P = Pitch) SOT23 >> W = 8mm, P = 4mm SOT89 >> W = 12mm, P = 8mm SOT143 > W = 8mm, P = 4mm SOT223 > W = 12mm, P = 8mm SOT323 > W = 8mm, P = 4mm SC59 >> W = 8mm, P = 4mm SC90 >> W = 8mm, P = 4mm D-PACK > W = 16mm, P = 8mm D2PACK > W = 24mm, P = 12mm D3PACK > W = 24mm, P = 24mm SM1 >>>>> W = 12mm, P = 4mm SOD80 >> W = 8mm, P = 4mm SOD323 > W = 8mm, P = 4mm
