TSOP Type 1

13 page TSOP Drawings Library Type 1 and Type 2 in PDF format.

Leads	Size	Lead Pitch	Order Number	Daisy Chain	View PDF

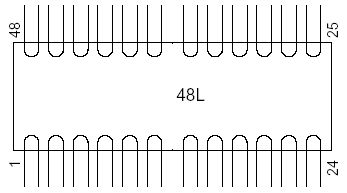

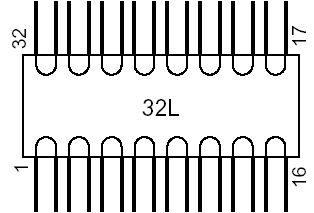

32	8 x 14mm	0.5mm	TSOP32ST19.7-T1-TIN	Daisy Chain	Drawing
32	8 x 20mm	0.5mm	TSOP32T19.7-T1-TIN	Daisy Chain	Drawing

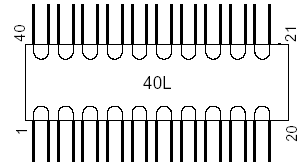

40	10 x 14mm	0.5mm	TSOP40ST19.7-T1-TIN	Daisy Chain	Drawing
40	10 x 20mm	0.5mm	TSOP40T19.7-T1-TIN	Daisy Chain	Drawing
48	12 x 20mm	0.5mm	TSOP48T19.7-T1-TIN	Daisy Chain	Drawing
TSOP Type 1 Specifications Lead Pitch 0.5mm (19.7 mils) lead Location Narrow end of body (T1) Lead Style Gull Wing Package Thickness 1.0mm Seated Height 1.2mm max Size Includes lead dimensions Nomenclature TSOP = Thin Small Outline Package Package Options Standard = Trays Optional = Tape & Reel Package Quantities Subject to change. Contact TopLine for exact package quantity in stock.

TSOP Type II

Leads

Size

Lead Pitch

Order Number

Outline Drawing

10 x 21mm

1.27mm

TSOP32T50-TIN-T2

Drawing

40 / 44

10 x 18.4mm

0.8mm

TSOP40/44T30-TIN-T2

Drawing

10 x 18.4mm

0.8mm

TSOP44T30-TIN-T2

Drawing

44 / 50

10 x 21mm

0.8mm

TSOP44/50T30-TIN-T2

Drawing

10 x 21mm

0.8mm

TSOP50T30C-T2-TIN

Drawing

10 x 22.2mm

0.8mm

TSOP54T30B-T2

Drawing

10 x 22.2mm

0.65mm

TSOP66T25B-T2

Drawing

10 x 22.6mm

0.5mm

TSOP86T19.7B-T2

Drawing

For Lead Free TIN = Sn100, B=SnBi, C=Sn98/Cu2.0
For Daisy Chain, Add -DE to end of Part Number
For Isolated circuit without internal connections, add -ISO to end of Part Number.
Check for availability.

TSOP Type 2 Specifications

Lead Pitch
TSOP20/26 - T2 > 1.27mm (50 mils)
TSOP24/28 - T2 > 1.27mm (50 mils)
TSOP32 - T2 > > > 1.27mm (50 mils)
TSOP40/44 - T2 > 0.8mm (31.5 mils)
Lead Location
Wide end of body (T2)
Lead Style
Gull Wing
Package Thickness
1.0mm
Seated Height
1.2mm max
Size
Excludes lead dimensions
Nomenclature
TSOP = Thin Small Outline Package
Packaging Options
Standard = Trays
Optional = Tape & Reel
Package Quantities
Subject to change. Contact TopLine for exact package quantity in stock.
