PLCC

PLCC Taping Information

Plastic Leaded Chip Carrier
Lead Pitch -- 50 mils (1.27mm)
Lead Style -- J-Lead
Packaging -- Tube or Tape & Reel
Package Quantities
Subject to change. Contact Topline for exact package quantity in stock.
Daisy Chain
Contact Topline for details. Add Suffix -DE for Daisy Chain to end of Order Number.

Taping Data(W=Width, P=Pitch)
18 Lead >> W = 24mm, P = 12mm
20 Lead >> W = 16mm, P = 12mm
28 Lead >> W = 24mm, P = 16mm
32 Lead >> W = 24mm, P = 16mm
44 Lead >> W = 32mm, P = 24mm
52 Lead >> W = 32mm, P = 24mm
68 Lead >> W = 44mm, P = 32mm
84 Lead >> W = 44mm, P = 36mm

Number Leads	Order Number in Reels	Order Number in Tubes	Daisy Chain	Outline Drawing
18	PLCC18E13A	PLCC18M	-	Drawing
20	PLCC20E13A	PLCC20M	Daisy Chain	Drawing
28	PLCC28E13A	PLCC28M	Daisy Chain	Drawing
32	PLCC32E13A	PLCC32M	Daisy Chain	Drawing
44	PLCC44E13A	PLCC44M	Daisy Chain	Drawing
52	PLCC52E13A	PLCC52M	Daisy Chain	Drawing
68	PLCC68E13A	PLCC68M	Daisy Chain	Drawing
84	PLCC84E13A	PLCC84M	Daisy Chain	Drawing

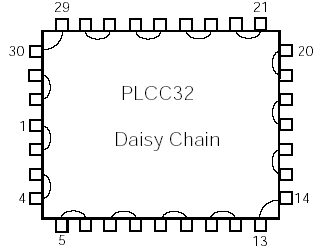

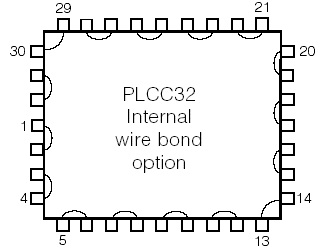

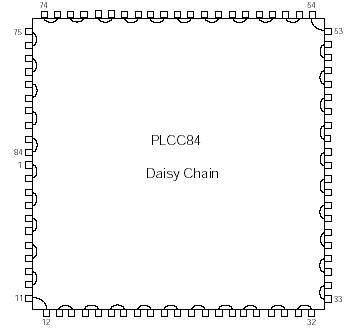

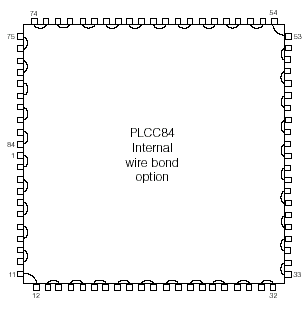

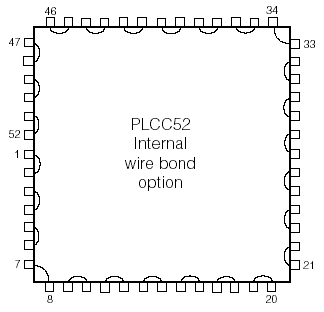

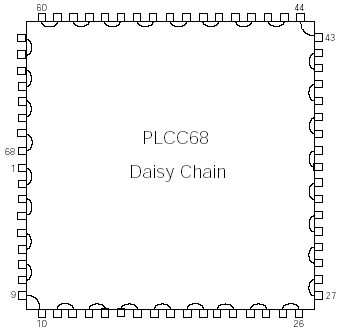

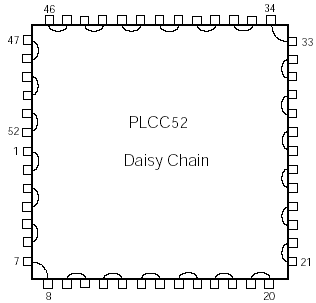

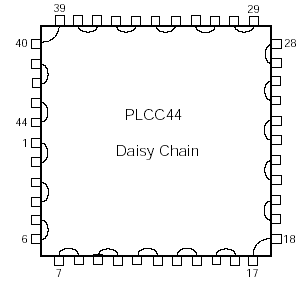

PLCC Daisy Chain
