径向引线电容(Radial)

Radial Lead Devices

Welcome to TopLine's RADIAL Components page. If you would like to download our dummy components catalog in PDF format, click here.

# Leads	Lead Space	Device	Packaging	Order Number
Molded Ceramic Capacitor
2	0.10" (2.54mm)	Molded Capacitor	Tape 2500	CKR04T

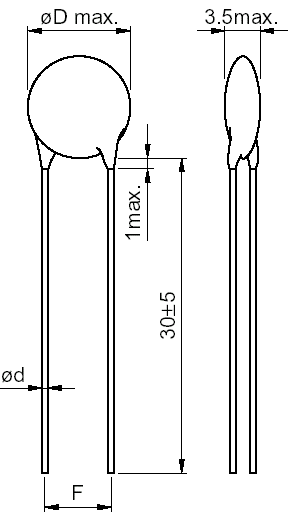

2	0.10" (2.54mm)	Disc Capacitor	Bulk	KK1
2	0.10" (2.54mm)	Dip Monolithic	Bulk	NR1
2	0.10" (2.54mm)	Dip Tantalum	Bulk	DD1

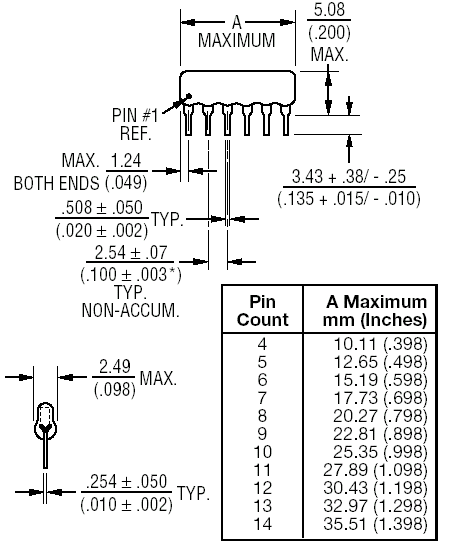

SIP Network - Tape & Reel
4	0.10" (2.54mm)	SIP Conformal	Tape 1000	RS4T
6	0.10" (2.54mm)	SIP Conformal	Tape 1000	RS6T
7	0.10" (2.54mm)	SIP Conformal	Tape 1000	RS7T
8	0.10" (2.54mm)	SIP Conformal	Tape 1000	RS8T
10	0.10" (2.54mm)	SIP Conformal	Tape 1000	RS10T

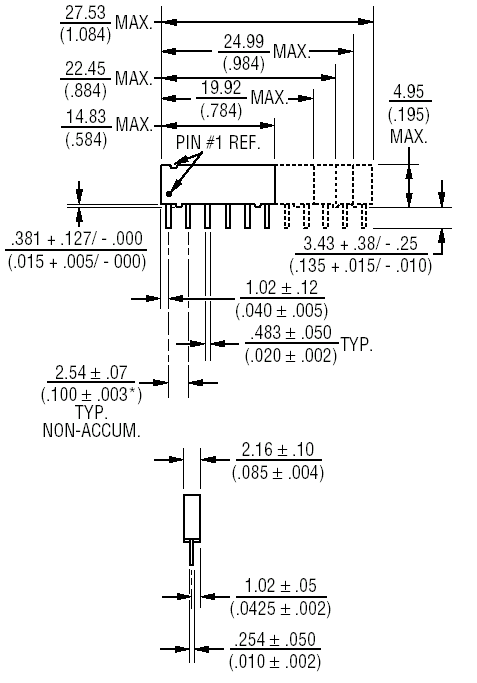

SIP Network Molded - in Tubes
4	0.10" (2.54mm)	SIP Molded	Tube 50	RSM4M
6	0.10" (2.54mm)	SIP Molded	Tube 40	RSM6M
8	0.10" (2.54mm)	SIP Molded	Tube 25	RSM8M
10	0.10" (2.54mm)	SIP Molded	Tube 20	RSM10M
Capacitors

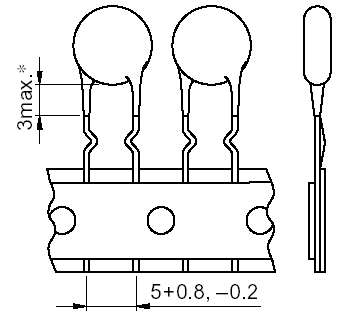

2	0.20" (5mm)	Disc Capacitor	Ammo 2000	KK2A
2	0.20" (5mm)	Disc Capacitor	Tape 2500	KK2T
2	0.20" (5mm)	Disc Capacitor	Bulk	KK2

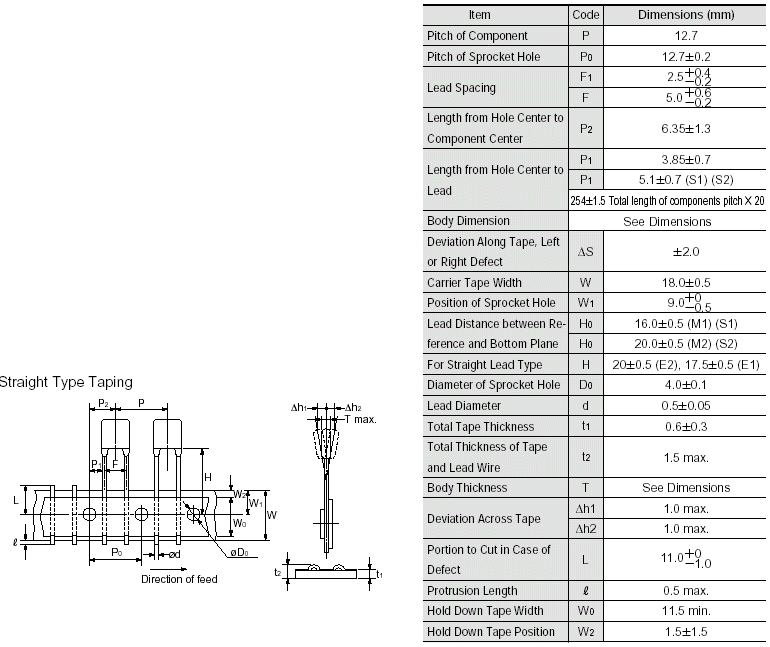

2	0.20" (5mm)	Dip Monolithic	Tape 2000	NR2T
2	0.20" (5mm)	Dip Monolithic	Ammo 2000	NR2A
2	0.20" (5mm)	Dip Monolithic	Bulk	NR2
2	0.20" (5mm)	Box Capacitor	Tape 2500	FR2B-T
2	0.20" (5mm)	Box Capacitor	Ammo 2500	FR2B-A

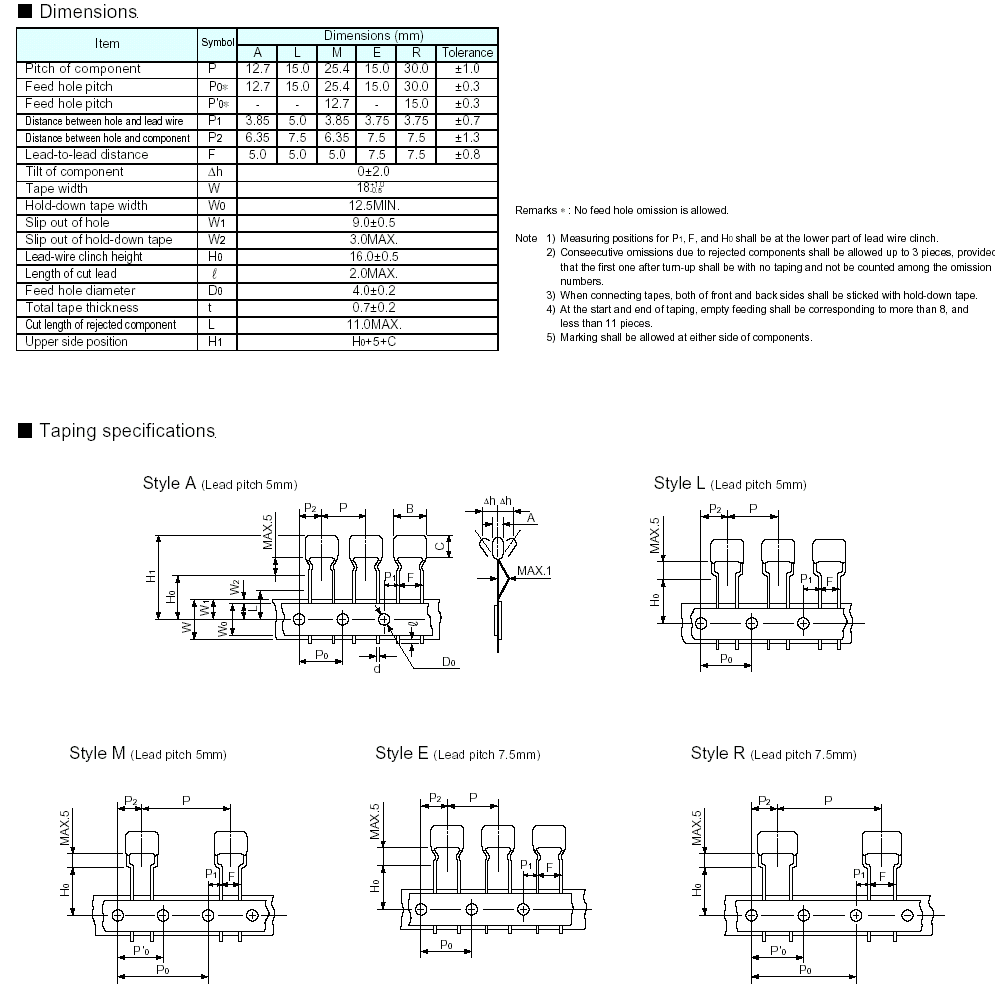

2	0.30" (7.5mm)	Film Capacitor	Tape 1000	FR3D-T
2	0.20" (5mm)	DIP Tantalum	Tape 2500	DD2T
2	0.20" (5mm)	DIP Tantalum	Bulk	DD2
2	0.20" (5mm)	Molded Capacitor	Tape 2500	CK05T
2	0.20" (5mm)	Molded Capacitor	Bulk	CK05
2	0.20" (5mm)	Molded Capacitor	Tape 2500	CK06T
2	0.20" (5mm)	Molded Capacitor	Bulk	CK06

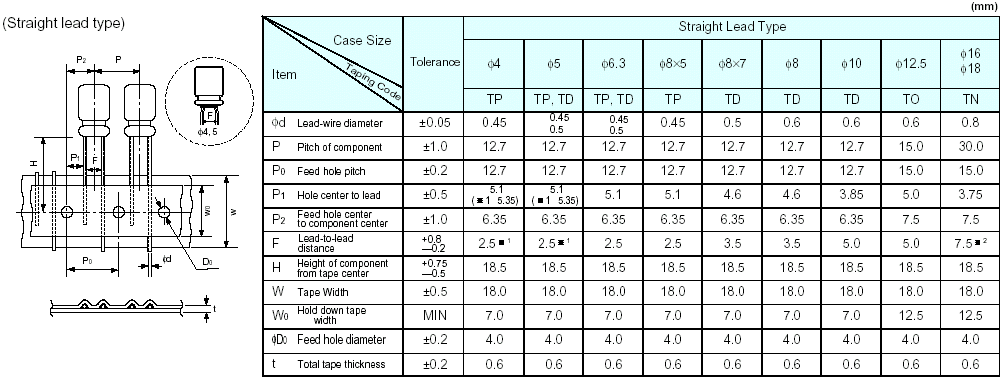

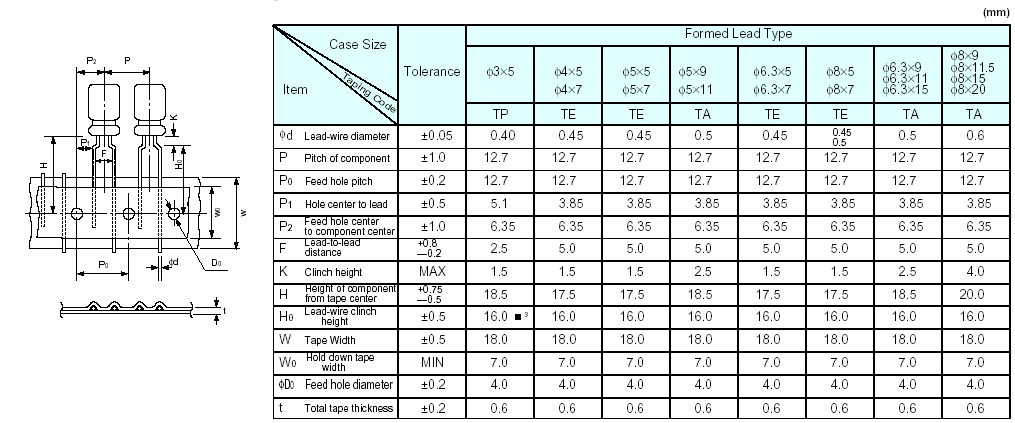

AL Capacitors
2	0.078" (2mm)	5mm X 11mm	Bulk	EH5x11
2	0.20" (5mm)	5mm X 11mm	Ammo 2000	EH5x11A
2	0.20" (5mm)	12.5mm X 20mm	Ammo 500	EH12.5x20A
Other Components

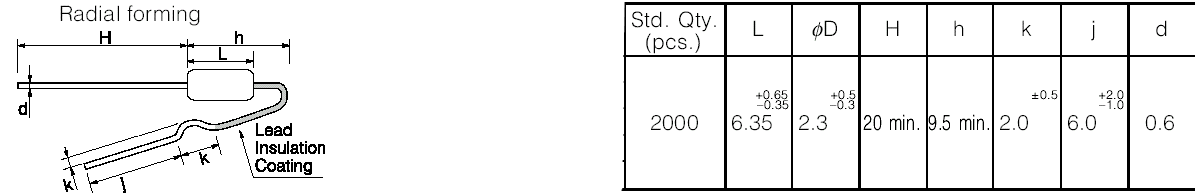

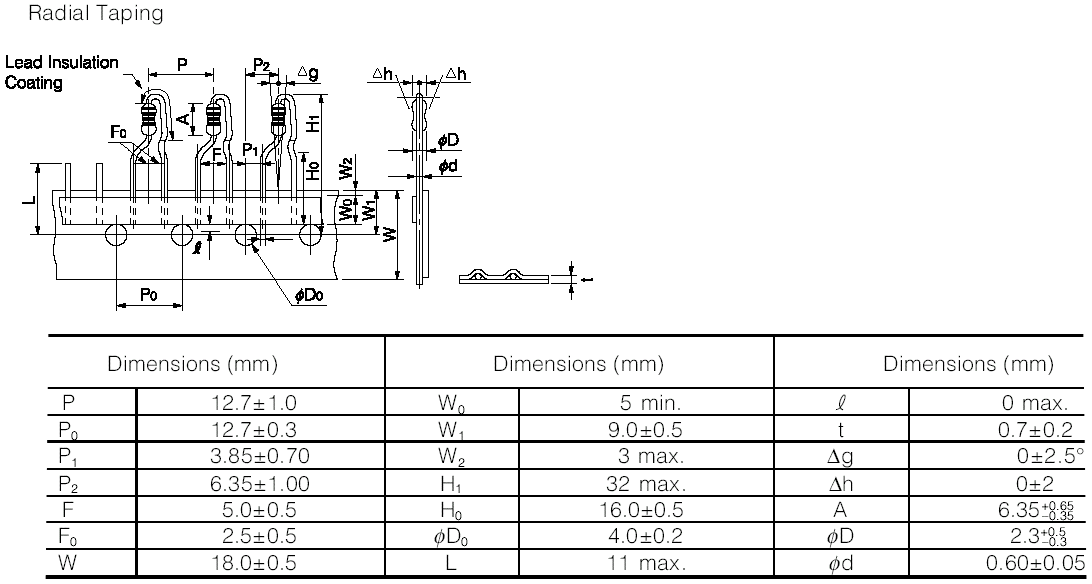

2	0.20" (5mm)	Pansert Resistor	Ammo 2000	CF14A_Panasert
2	0.20" (5mm)	Inductor	Ammo 2000	LAL02VK-A

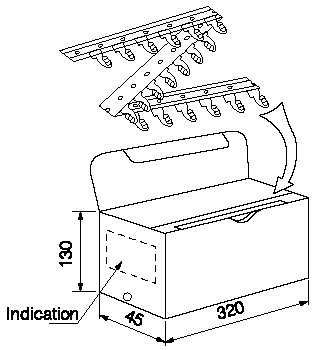

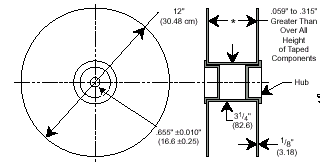

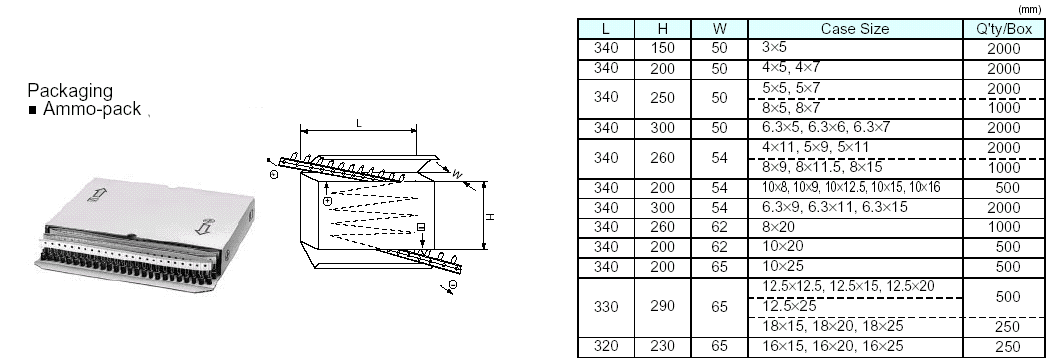

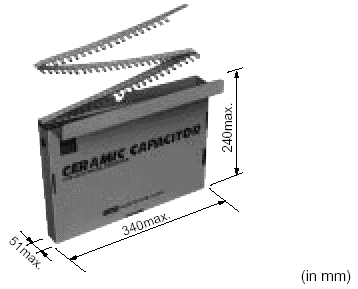

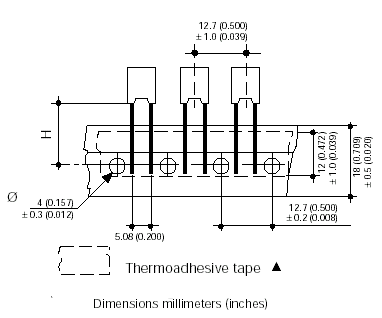

Ammo Box Dimensions AL Cap Ammo Box Dimensions Box Film Cap Ammo Box Dimensions Panasert Resistors Ammo Box Dimensions Mono Cap Dimensions for Typical Reel For "BULK" Packaging, remove the letter "T" or "A" or "M"at the end of the TopLine Order Number.
