晶体,振荡器Surface Mount Crystal Oscillator

封装类型

元器件封装

晶体,振荡器 SMD - Surface Mount Crystal Oscillator

Case Style	Size	Tape Info	PCB Land pattern	TopLine Part Series

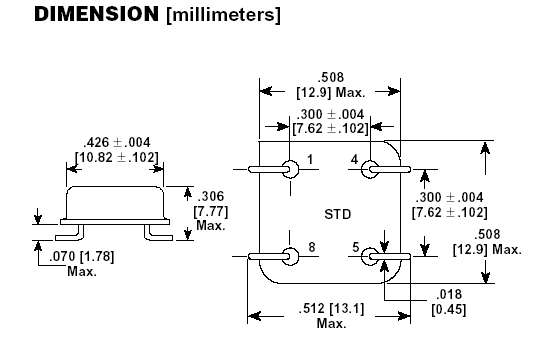

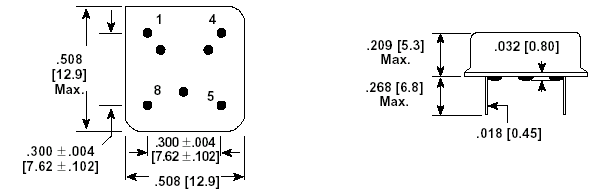

Metal 1/2 Can Gull Wing Leads	12.5mm x 12.5mm	W=24mm P=24mm	PCB	LX1/2SMD-E13A - Tape & Reel LX1/2SM-M - Tubes 40pcs

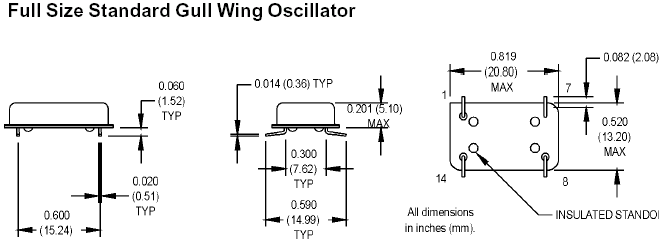

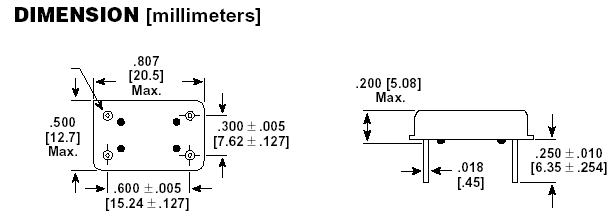

Metal Full Can Gull Wing Leads	20.8mm x 13.2mm	W=32mm P=24mm	PCB	LX0SMD-E13A - Tape & Reel LX0SMD-M - Tubes 25
Metal Low Profile	Height=3.3mm Base=11.1mm x 4.6mm	W=24mm P=12mm	-	SM49SE13A

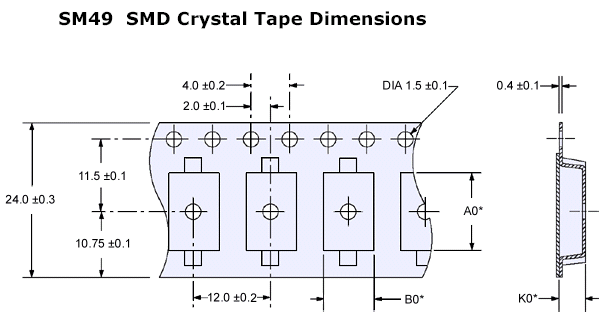

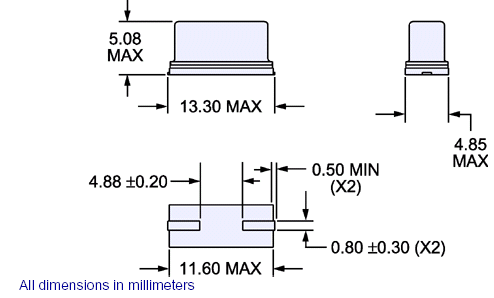

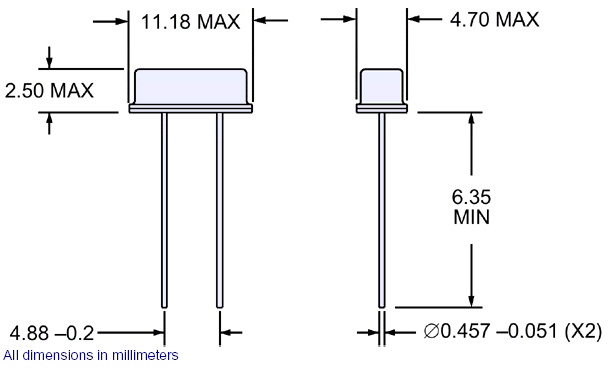

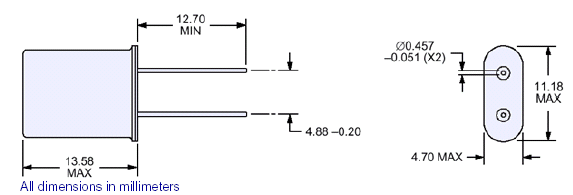

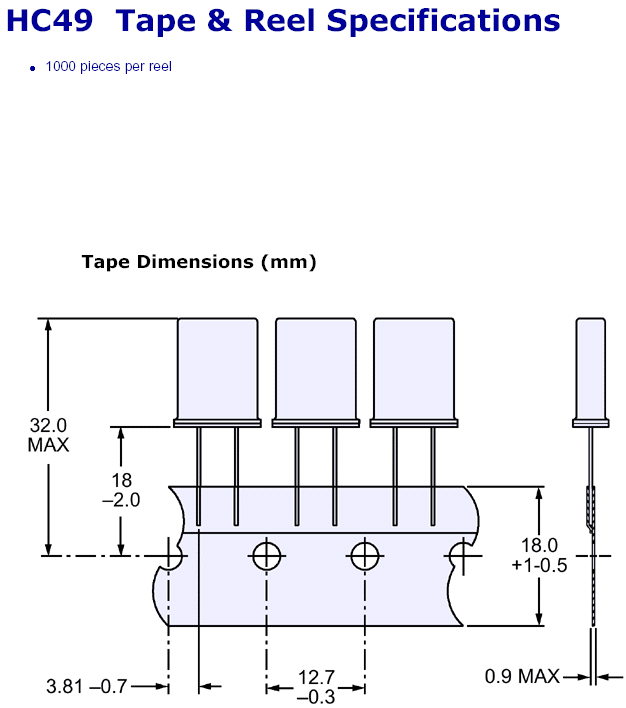

Metal Standard	Height=5.08mm Base=11.1mm x 4.6mm	W=24mm P=12mm	-	SM49E13A
Plastic	8.7mm x 3.7mm	W=16mm P=8mm	-	SX3512E13A

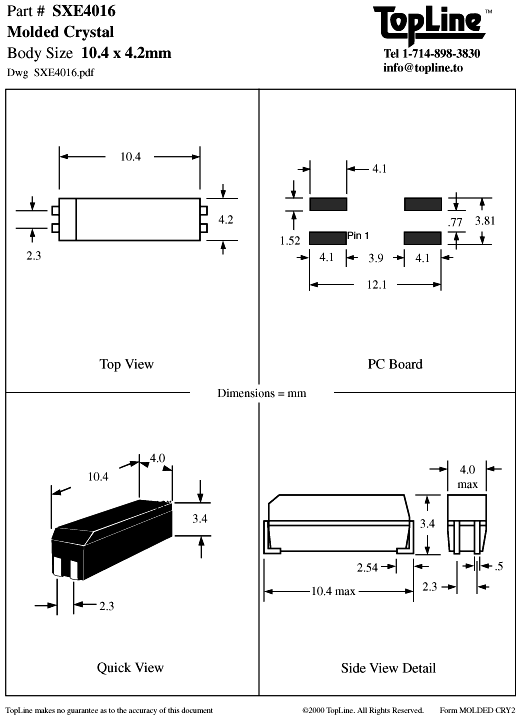

Plastic	10.4mm x 4.2mm	W=16mm P=8mm	-	SXE4016E13A

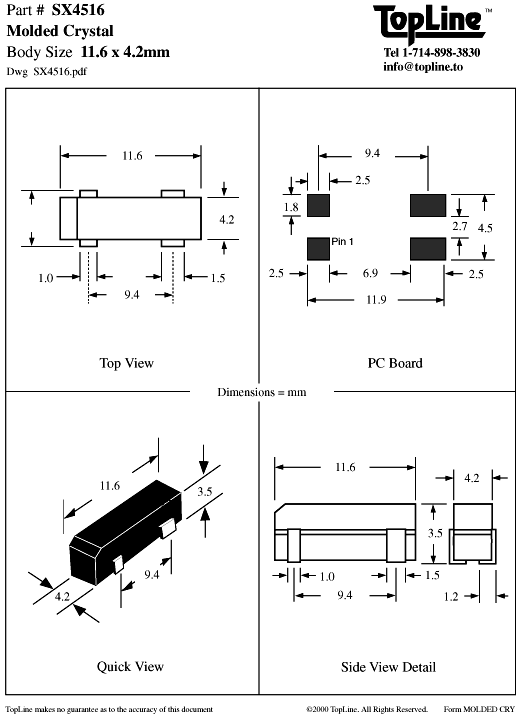

Plastic	11.6mm x 4.2mm	W=24mm P=8mm	-	SX4516E13A

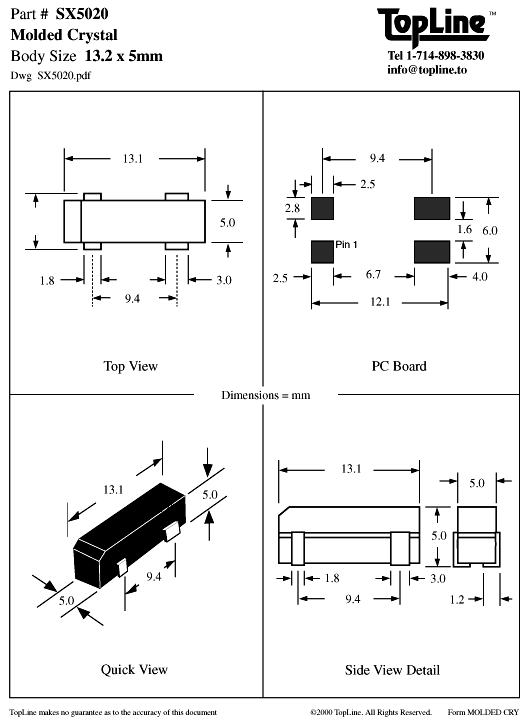

Plastic	13.2mm x 5.0mm	W=24mm P=8mm	-	SX5020E13A

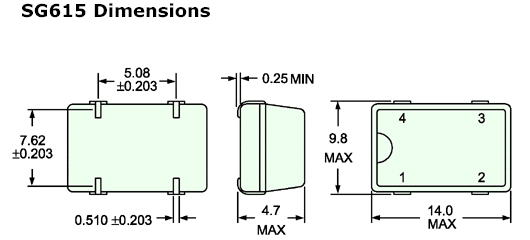

Plastic	14mm x 9.8mm	W=24mm P=12mm	-	SG615E13A

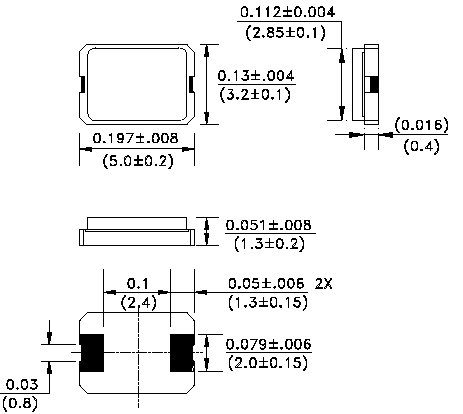

Ceramic	5.0mm x 3.2mm	W=12mm P=8mm	PCB	LCN2-5.0x3.2E7A

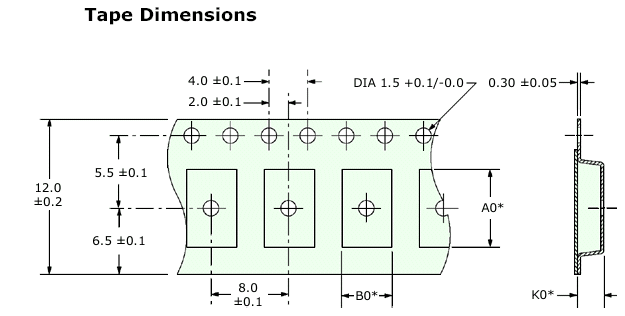

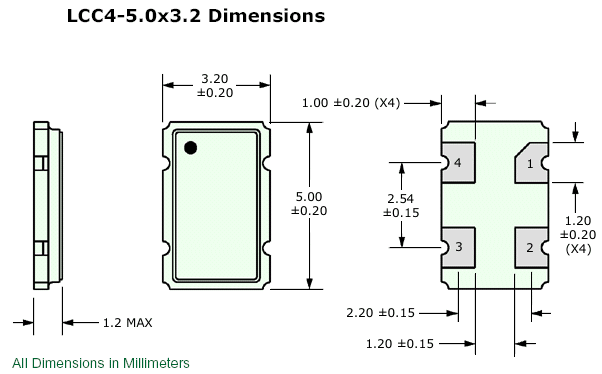

Ceramic	5.0mm x 3.2mm	W=12mm P=8mm	-	LCC4-5.0x3.2E7A

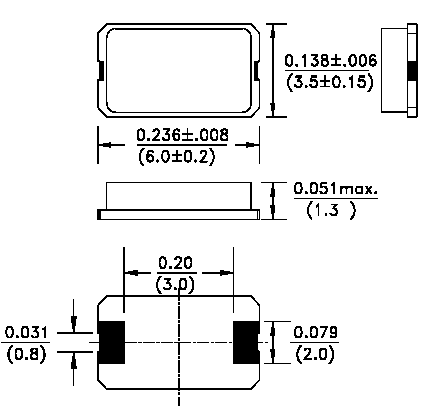

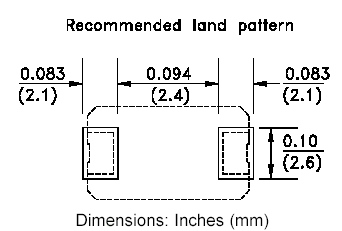

Ceramic	6.0mm x 3.5mm	W=16mm P=8mm	PCB	LCN2-6.0x3.5E7A

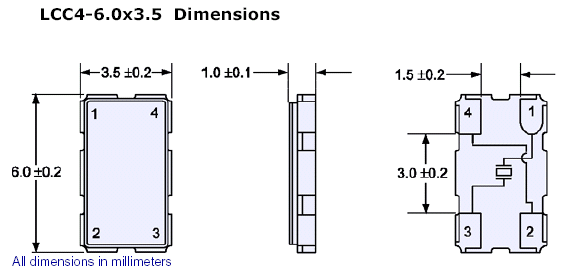

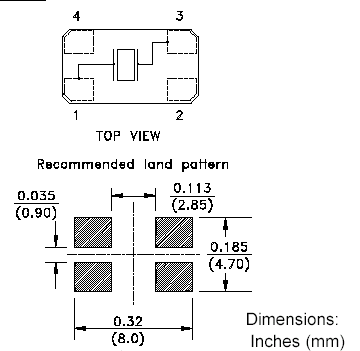

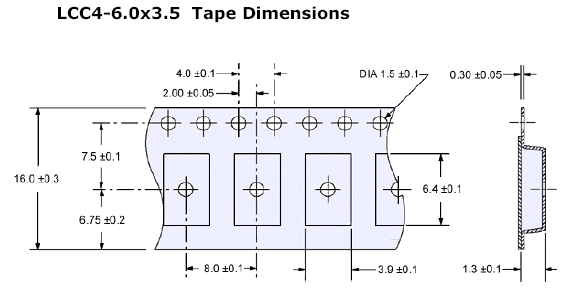

Ceramic	6.0mm x 3.5mm	W=16mm P=8mm	PCB	LCC4-6.0x3.5E7A

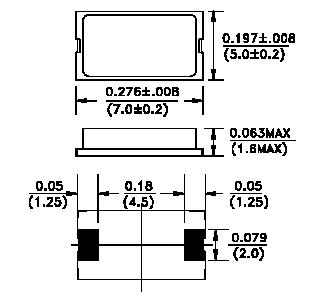

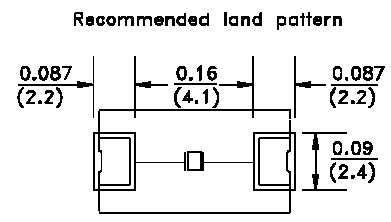

Ceramic	7.0mm x 5.0mm	W=16mm P=8mm	PCB	LCN2-7.0x5.0E13A

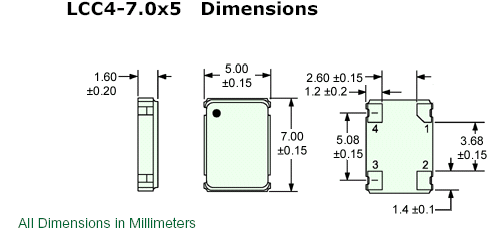

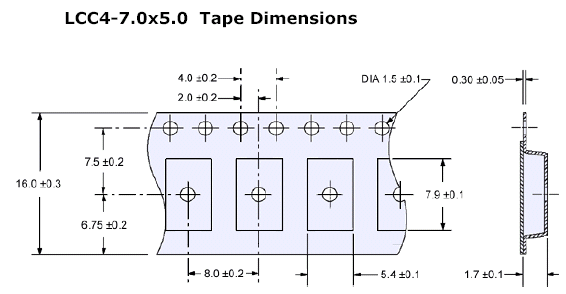

Ceramic	7.0mm x 5.0mm	W=16mm P=8mm	-	LCC4-7.0x5.0E13A

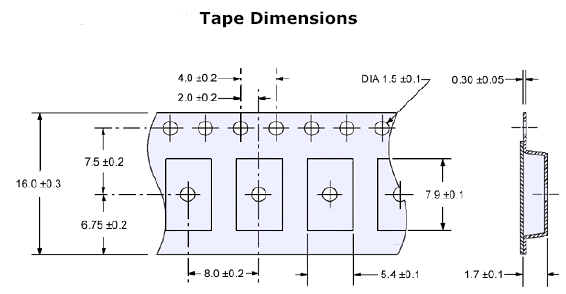

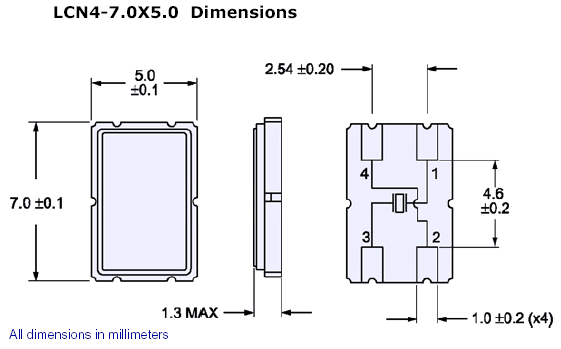

Ceramic	7.0mm x 5.0mm	W=16mm P=8mm	-	LCN4-7.0x5.0E13A

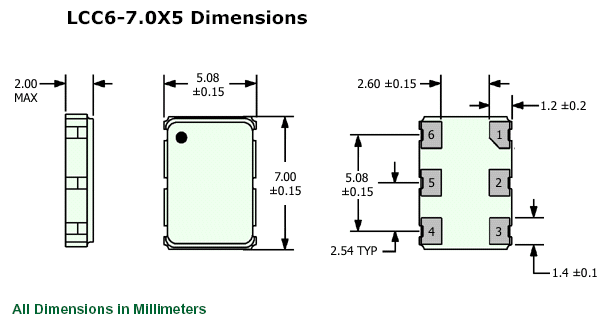

Ceramic	7.0mm x 5.0mm	W=16mm P=8mm	-	LCC6-7.0x5.0E13A

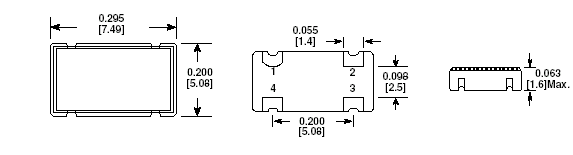

Ceramic	7.5mm x 5.0mm	W=16mm P=8mm	PCB	LCC4-7.5x5.0E13A

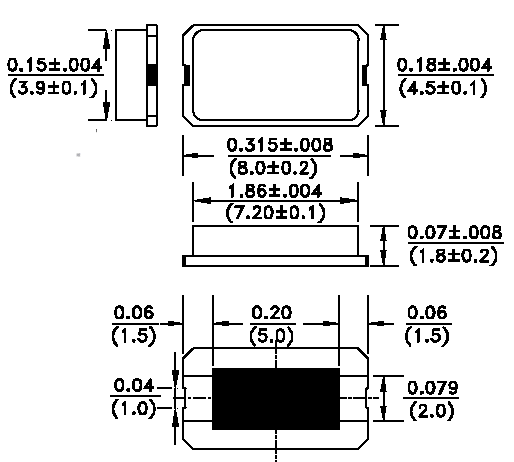

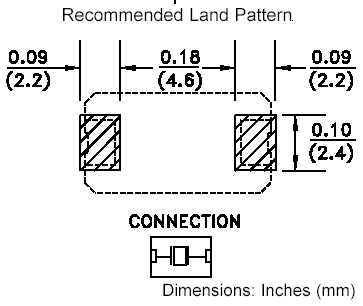

Ceramic	8.0mm x 4.5mm	W=16mm P=8mm	PCB	LCC2-8.0x4.5E13A

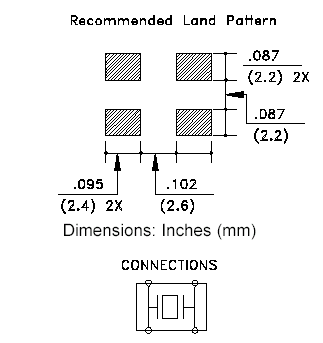

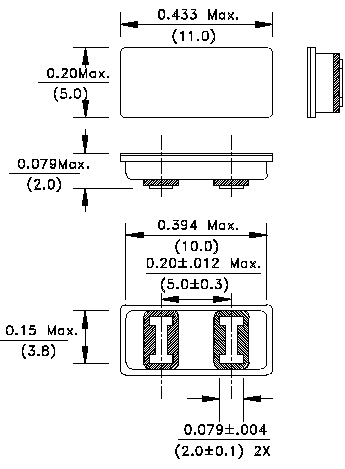

Ceramic	11.0mm x 5.0mm	W=24mm P=12mm	PCB	LCC2-11.0x5.0E13A
Ceramic	11.0mm x 6.5mm	W=24mm P=12mm	-	LCN4-11x6.5E13A

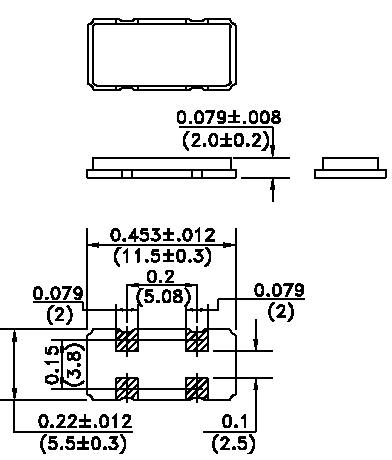

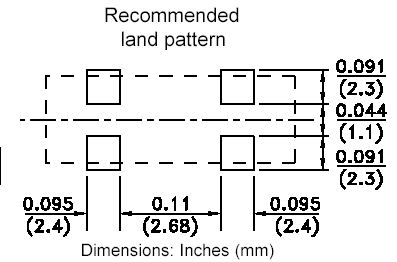

Ceramic	11.5mm x 5.5mm	W=24mm P=12mm	PCB	LCC4-11x5.5E13A
