Welcome to TopLine's AXIAL Components page. If you would like to download our dummy components catalog in PDF format, click here. |
Case Size | Device Type | Lead Diameter | Qty Tape/Reel | Order No. |
1/8 W Resistor | ||||
0.063" x 0.145" | 1/8W-Resistor | 0.016" ~ 0.020" | 5000 | CF18T |
0.063" x 0.145" | 1/8W-Resistor | 0.016" ~ 0.020" | 5000 | RCR05T |
0.063" x 0.145" | 1/8W-Resistor | 0.016" ~ 0.020" | 5000 | RL05T |
1/4 W Resistor | ||||
0.090" x 0.255" | 1/4W-Resistor | 0.025" | 5000 | CF14T |
0.090" x 0.255" | 1/4W-Resistor | 0.025" | 5000 | RCR20T |
0.090" x 0.255" | 1/4W-Resistor | 0.025" | 5000 | RL07T |
0.090" x 0.255" | 1/4W-Resistor | 0.025" | 5000 | RN55T |
1/2 W Resistor | ||||
0.138" x 0.373" | 1/2W-Resistor | 0.028" ~ 0.032" | 2500 | CF12T |
0.138" x 0.373" | 1/2W-Resistor | 0.028" ~ 0.032" | 2500 | RC20T |
0.138" x 0.373" | 1/2W-Resistor | 0.028" ~ 0.032" | 2500 | RL20T |
0.138" x 0.373" | 1/2W-Resistor | 0.028" ~ 0.032" | 2500 | RN60T |
1 W Resistor | ||||
0.177" x 0.560" | 1W-Resistor | 0.030" ~ 0.040" | 1000 | CF100T |
0.177" x 0.560" | 1W-Resistor | 0.030" ~ 0.040" | 1000 | RC32T |
0.177" x 0.560" | 1W-Resistor | 0.030" ~ 0.040" | 1000 | RL32T |
0.177" x 0.560" | 1W-Resistor | 0.030" ~ 0.040" | 1000 | RN65T |
2 W Resistor | ||||
0.236" x 0.700" | 2W-Resistor | 0.030" ~ 0.045" | 1000 | CF200T |
0.236" x 0.700" | 2W-Resistor | 0.030" ~ 0.045" | 1000 | RL42T |
Tantalum Capacitor | ||||
0.185" x 0.474" | B-Case | 0.020" | Varies | CS2T |

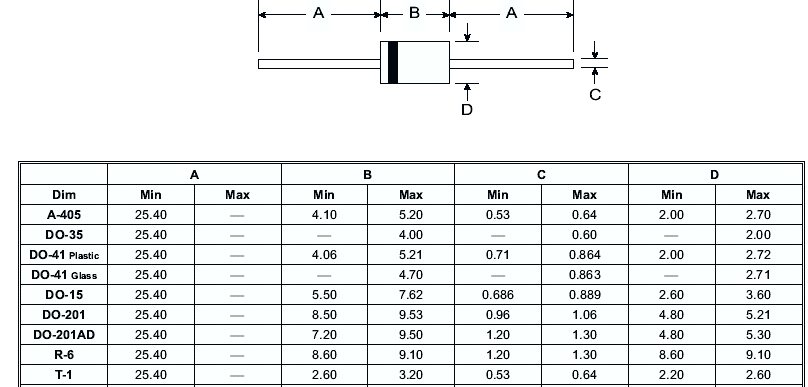

Diodes and Rectifiers | ||||

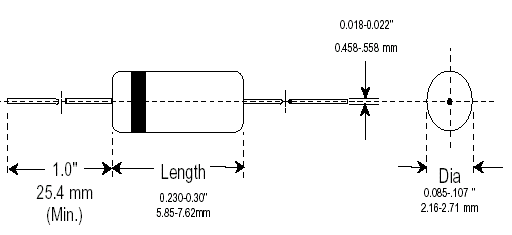

0.100" x 0.300" | Glass Diode | 0.020" | 5000 | DO7T |
0.140" x 0.300" | Molded Rectifier | 0.032" | 4000 | DO15T |
0.140" x 0.350" | Glass Diode | 0.032" | 4000 | DO29T |

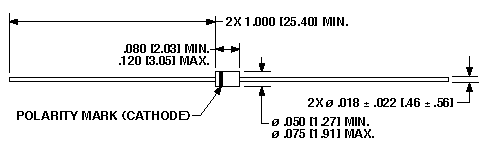

0.070" x 0.120" | Glass Diode | 0.020" | 10,000 | DO34T |

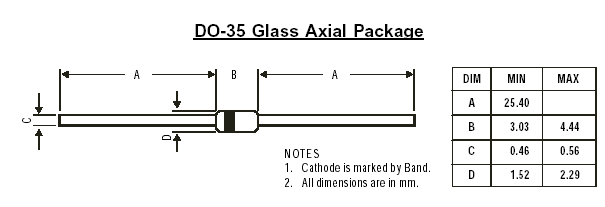

0.070" x 0.154" | Glass Diode | 0.020" | 10,000 | DO35 Bulk |

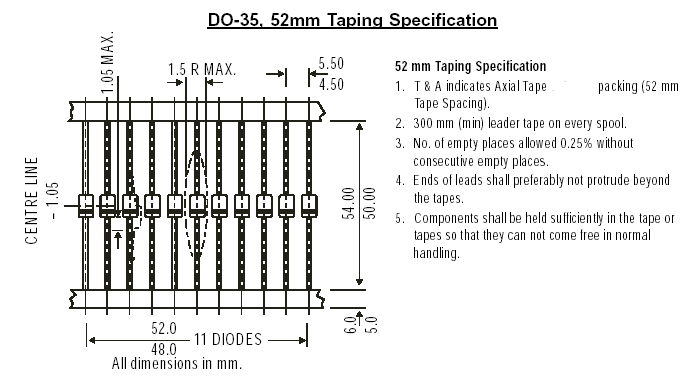

0.070" x 0.154" | Glass Diode | 0.020" | 10,000 | DO35T Tape & Reel |

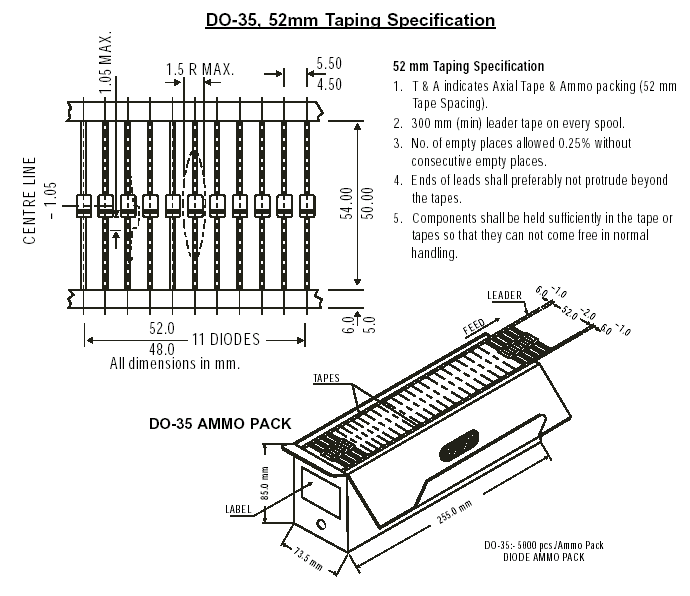

0.070" x 0.154" | Glass Diode | 0.020" | 5,000 | DO35A Ammo Pack |
0.107" x 0.205" | Molded Rectifier | 0.032" | 5500 | DO41T Tape & Reel |

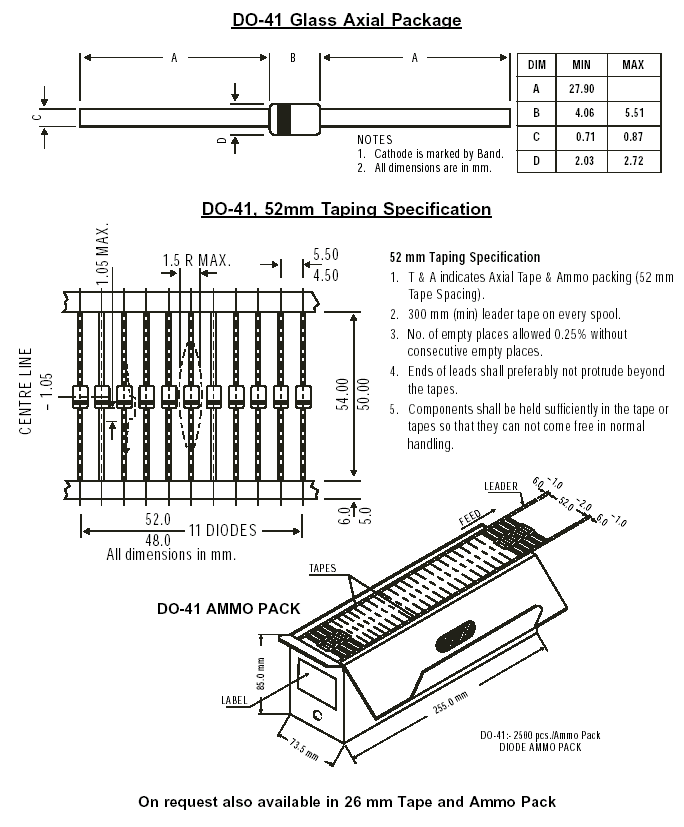

0.107" x 0.205" | Glass Rectifier | 0.032" | 2500 | DO41A Tape Ammo Pack |
0.220" x 0.375" | Molded Rectifier | 0.050" | 1200 | DO201ADT |

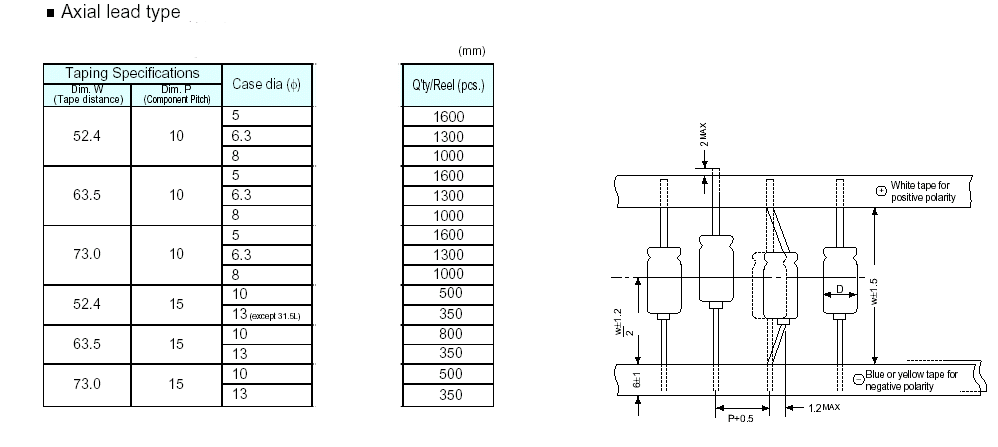

Aluminum Capacitors (Al Cap) | ||||
6mm x 12 mm | AL-Capacitor | 0.6mm (0.024") | Tape & Reel | EA6X12T |
5 to 13mm Diameter | AL-Capacitor | 0.6mm (0.024") | Tape & Reel | Axial Lytic |
Bulk Loose: Remove "T" suffix from the order number. TopLine can provide other axial lead components not shown above. |
